Drilling Data Interpretation

BENEFITS

All species are read on a linear scale – even if any are at notably different abundances
Provide more information for drilling data interpretaion
May assist with lateral steering by detecting and characterizing components in order to identify lithologic/stratagraphic units
Track changes in the reservoir fluid profile including GOR changes and “sweet spots” of improved Oil/Gas contribution
Indicate relatively hydrocarbon depleted or residual intervals
Assist with identifying Gas/Oil/Water contacts and transitions
Monitor for relative Hydrogen increases which can directly indicate bit wear and motor failure
Distinctly indicate onset and base of pay sections in vertical wells
Identify limits for fluid compartments and vertical charge units which can then be used to map and characterize composition changes
Assists with directly indicating water saturation increases
Comparisons between Helium and/or Argon to Methane can directly indicate porosity and permeability profile changes
Geolocate producible H2S sources in both lateral and vertical wells
No calibration gases needed. Atmospheric Nitrogen, Oxygen, & Argon are used in the process.
Integration with existing mudlogging operations, or it can be operated independently.
Plug & Play, requiring only WITS & a gas sample
Outputs include direct WITS output, local & online real time graphic monitors with digital LAS export files.
Help with identifying faults & fractures

(Alkane and Cycloalkane)

Methane (C1) thru Decane (C10)

Benzene

Toluene

Xylene

Acetic Acid

Sulfur Monoxide (SO)

Slufur Dioxide (SO2)

Carbon Disulfide (CS2)

Hydron Sulfide (H2S)

Helium (He)

Hydrogen (H2)

Carbon Dioxide (CO2)

Nitrogen (N2)

Oxygen (O2)

Argon (Ar)

Mass range	AMU 2 – 150
Peak width @ 10% peak maximum	<1 AMU
Detector type	Faraday Cup/Electron Multiplier
Response time	<1 second
Sample inlet connection	1/4” quick connect fitting
Sample pressure	15 psia (1 atm)
Detection limit	<1 ppm
Maximum data rate	1.8ms per point (555 data points per second)
PC interface	CAT5e Ethernet cable (RJ45)
Standard I/O	Two analog inputs, two digital inputs, three digital outputs – 24V @ 0.5A

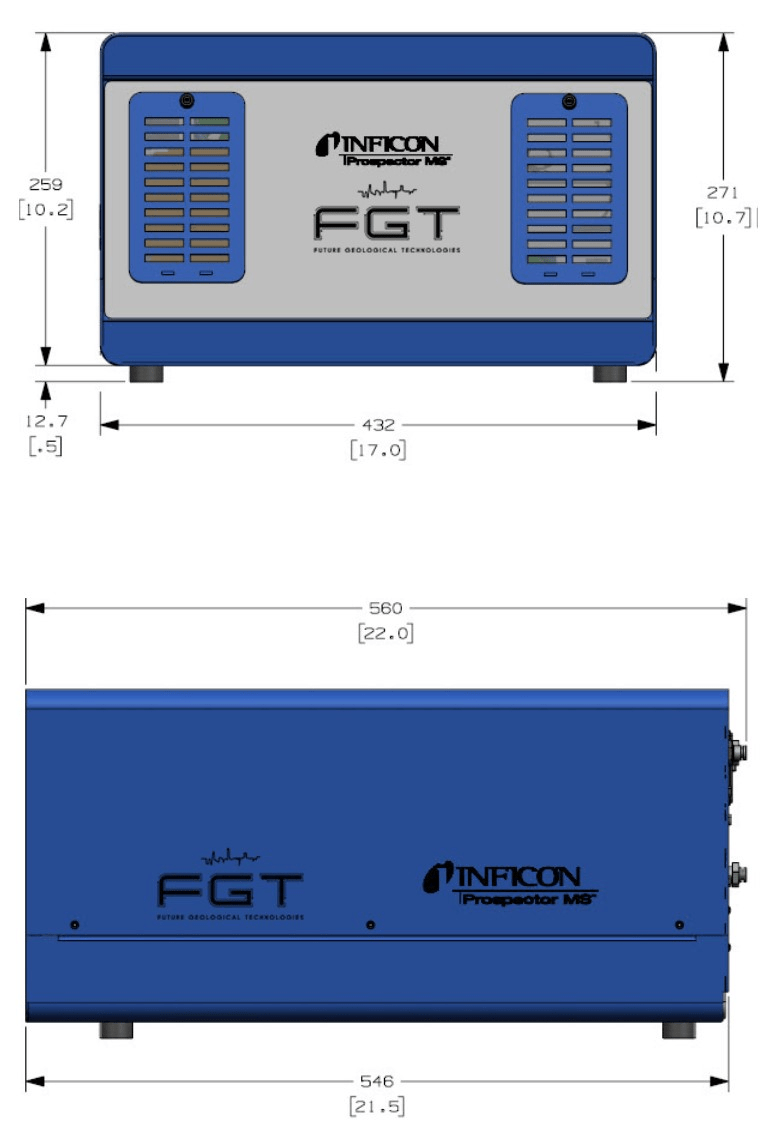

Dimensions (L x W x H)	56 x 43.2 x 27.1 cm (22 x 17 x 10.7 in)
Weight	54lbs
Environmental conditions	5 – 35°C up to 85% RH non-condensing
Power input	110 – 230 V (ac)
